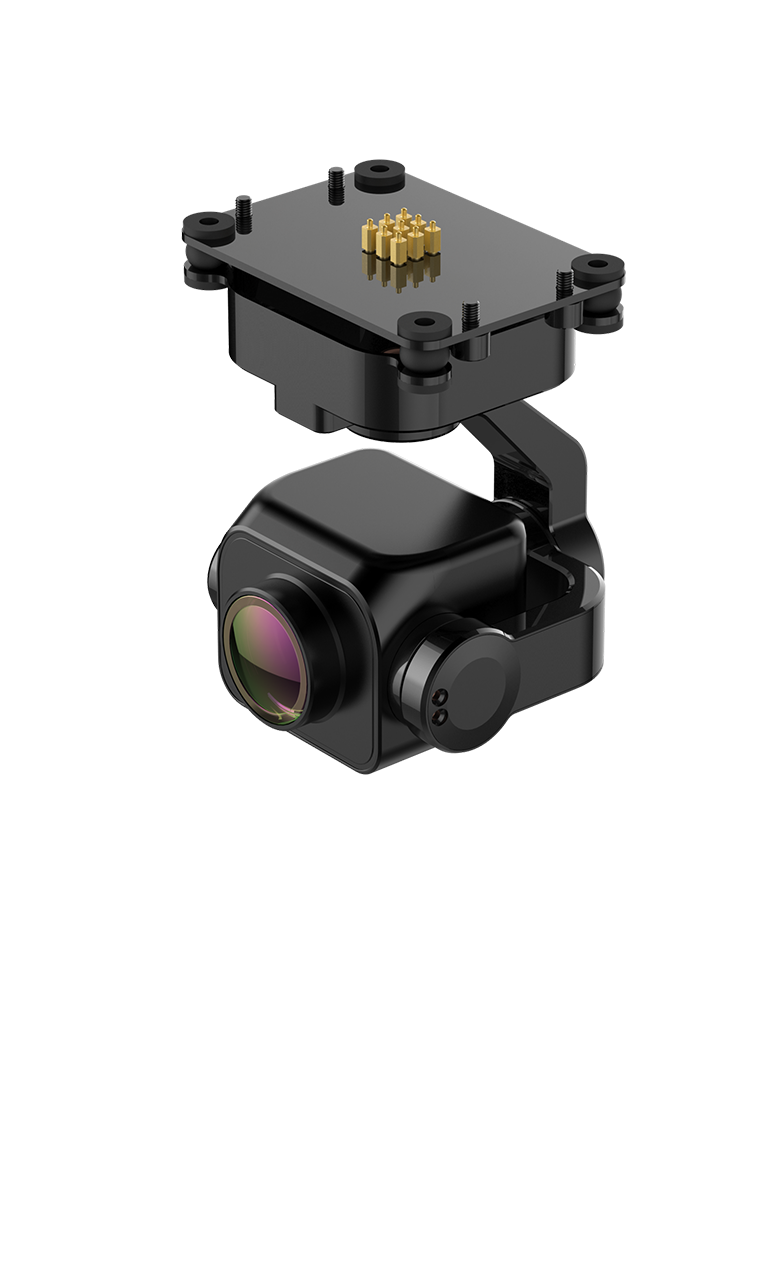

DL10 4K Camera
This lightweight, portable, compact mini camera with a 3-axis self-stabilized gimbal is perfect for aerial photography. The camera is equipped with a 20 megapixel CMOS sensor that supports up to 4K resolution (4096x2160), H264@24/25/30/48/60fps, H265@24/30fps video.
Specifications:
- Gimbal
 - Dimensions: 64.7mm x 72.2mm x 68mm
 - Weight: 132g
 - Stability augmentation system: 3-axis
 - Angular Accuracy: ±0.02°
 - Controllable rotation range: Roll: ± +40° Pitch: +30° to -120° Pan: ±30°
 - Structural design range: Roll: ±35° Pitch: +40° to -130° Pan: ±40°
 - Maximum control speed (pitch): 100 °/s
 - Camera
 - Effective pixels: 20 million pixels
 - Image Resolution: 3:2 (5472x3648) / 4:3 (4864x3648) / 16:9 (5472x3080)
 - Image format: JPEG, DNG+JPEG
 - FOV: DFOV 91°
 - ISO range: 100 – 6400
 - Shutter Speed: 4s - 1/8000
 - Video Resolution:
 -
		4K (4096x2160), H264 24/25/30/48/60fps, H265 24/30fps
UHD (3840x2160), H264 24/25/30/48/60fps, H265 24/30fps
UHD (2720x1530), 24/25/30/48/50/60fps
FHD (1920x1080), 24/25/30/48/50/60/120fps
HD (1280x720), 24/25/30/48/50/60/120fps - Video format: MP4
